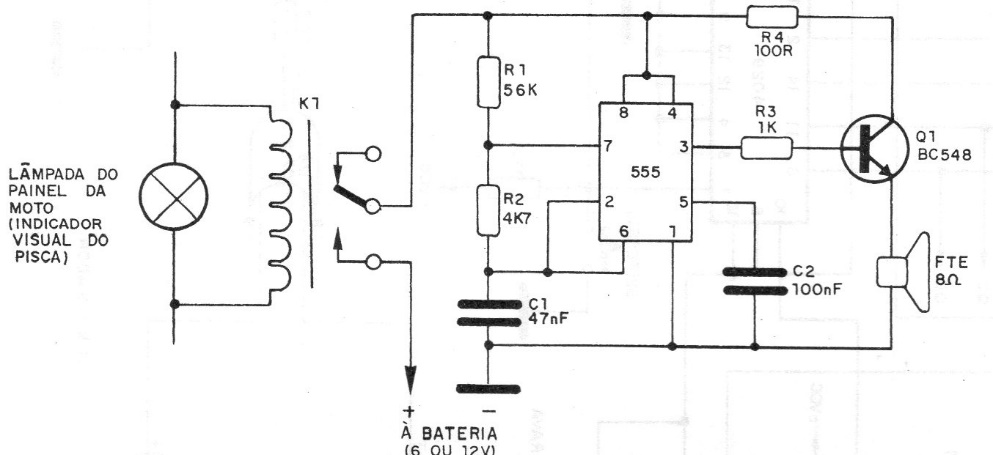

We found this simple warning circuit for car blinkers (arrow) in a 1987 publication. The relay must be 12 V and the sound can be modified by changing R1 and R2 for other values. The loudspeaker is of the small type of 8 ohms and the power is taken from the car itself.
