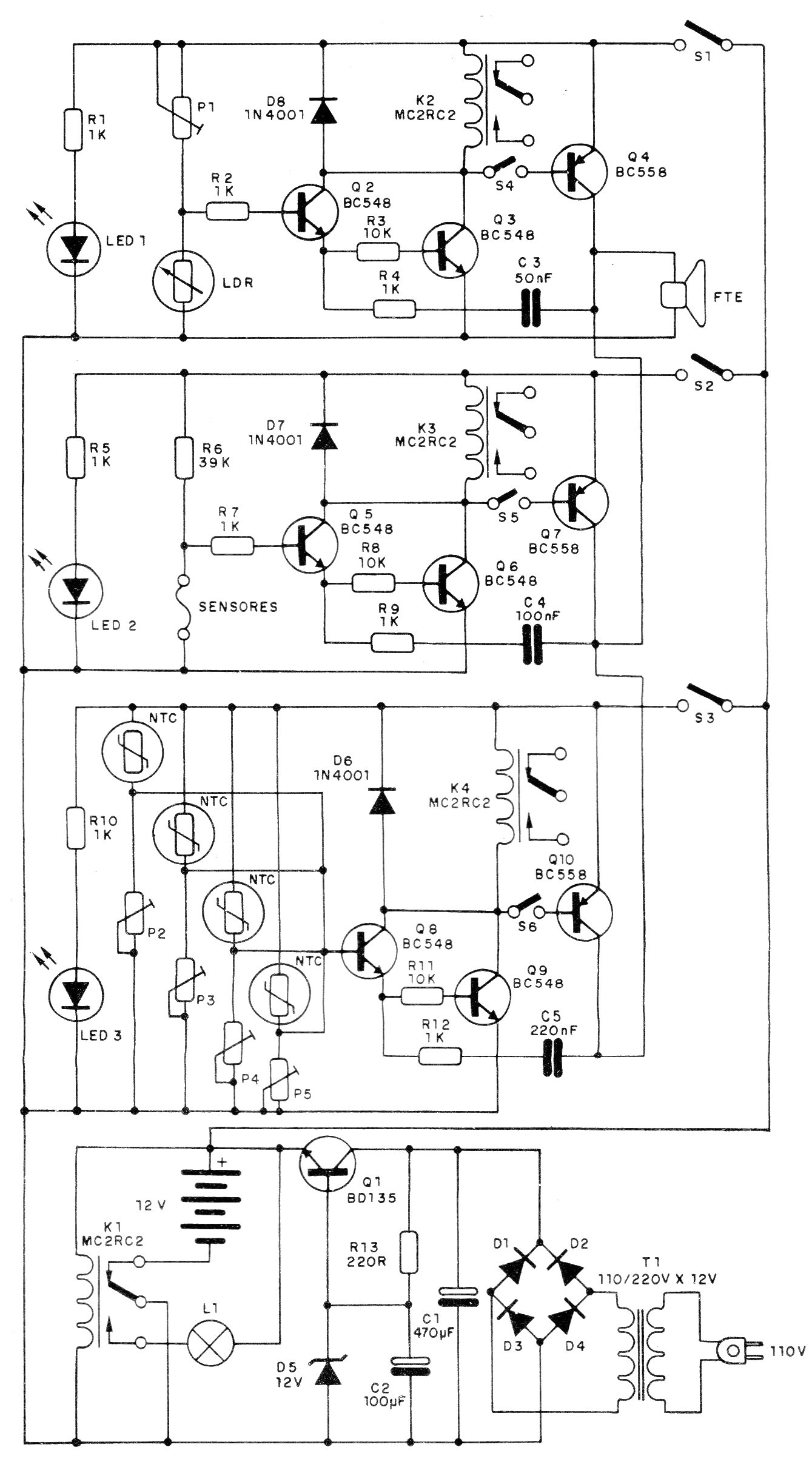

This circuit, published in 1988, uses several types of sensors and relays to activate warning systems. The circuit can use pass-through sensors, interrupt sensors and NTCs. Also included is a system for permanently charging a battery that supplies the circuit from a local network source.
