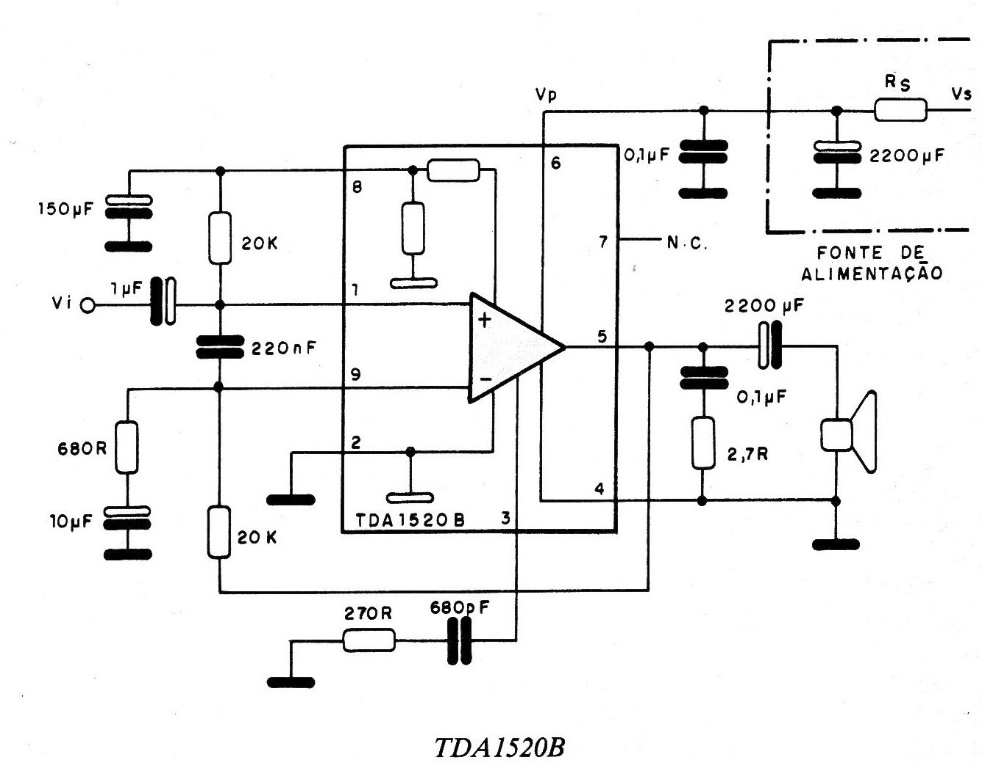

This integrated circuit is recommended as a standard amplifier in sound equipment, TV sets, recorders etc. It is presented in a 9-pin SIL enclosure. Among the main highlights we have:
- Operates with symmetrical unstabilized or non-symmetrical stabilized from 15 to 50 V.
- Voltage gain with adjustable feedback between 20 dB and 46 dB (33 V supply and 4 ohms load).
- Very low output offset voltage (100 mV, max), which makes it ideal for bridge connections.
- Low crossover and secondary crossover distortion.
- Low intermodulation distortion (0.02 ° / o at Po = 10 W) and intermodulation transient distortion (0.01% at Po = 10 W).
- Low harmonic distortion
- High growth rate (6 V / us)
- Mute entry during switching on and off operations, which eliminates clicks.
- Excellent ripple rejection (60 dB at 100 Hz) 0 Internal thermal protection.
For a total distortion of 0.5 ° / o we have an output power of 22 W with a 33 V supply and a load of 4 ohms.
