Infrared Receiver TDA3047 (CB15395E)

Details
Written by: Newton C. Braga

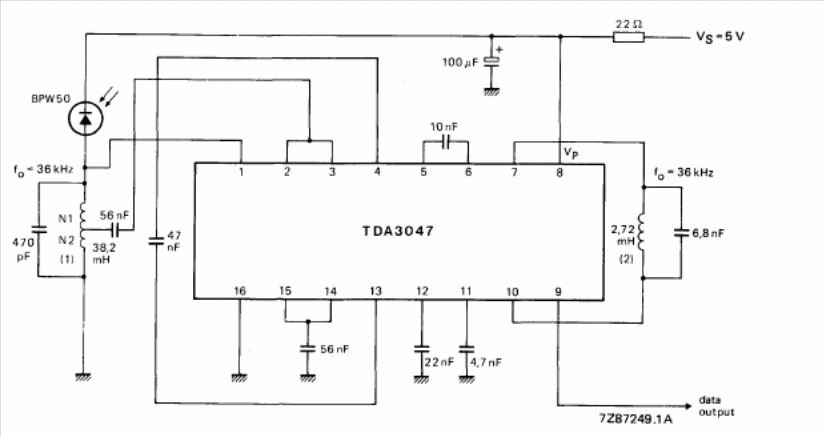

This narrowband data receiver is from the Philips Databook of 1990. The circuit is powered by 5 V and N1 has 3.21 turns, N2 1 turns with Q = 16.




| Clique na imagem para ampliar |
