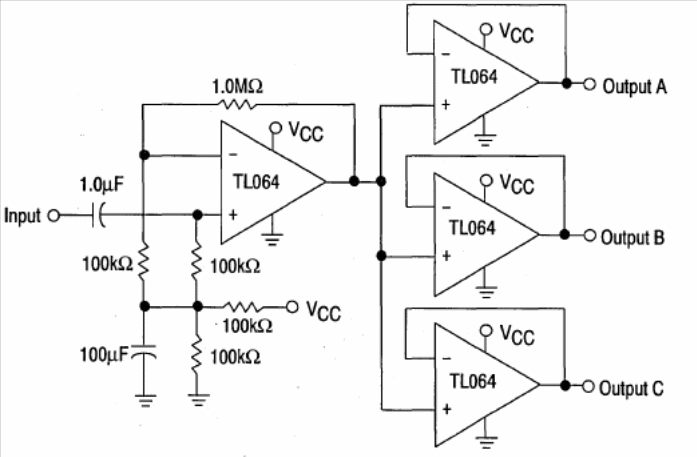

TL064 Audio Distributor Amplifier (CB15305E)

Details
Written by: Newton C. Braga



This configuration found in other companies' manuals is from Motorola's 1993 Linear Interface ICs.




| Clique na imagem para ampliar |
