TDA2006 8 W amplifier (CB15085E)

Details
Written by: Newton C. Braga

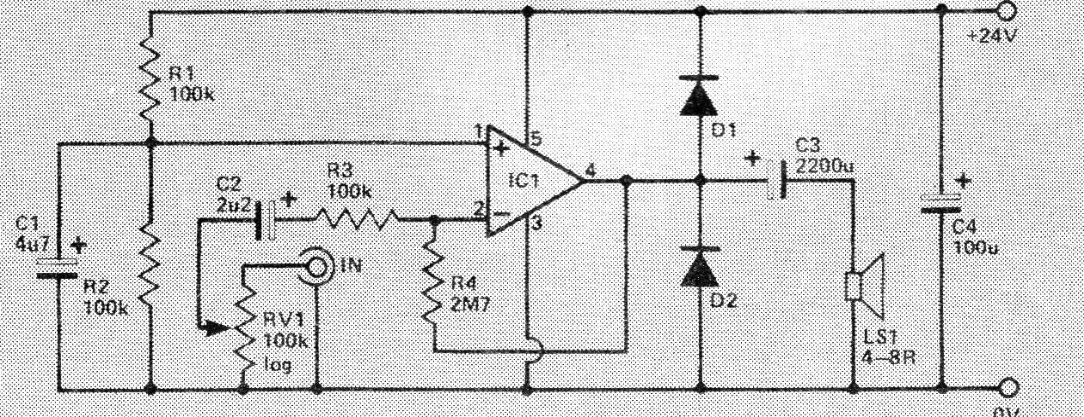

This is the factory setting (National Semiconductor) of the TDA2006 as an audio amplifier. The circuit works with 24 V and the diodes can be 1N4148.




| Clique na imagem para ampliar |
