Millivoltmeter AC (CB14725E)

Details
Written by: Newton C. Braga

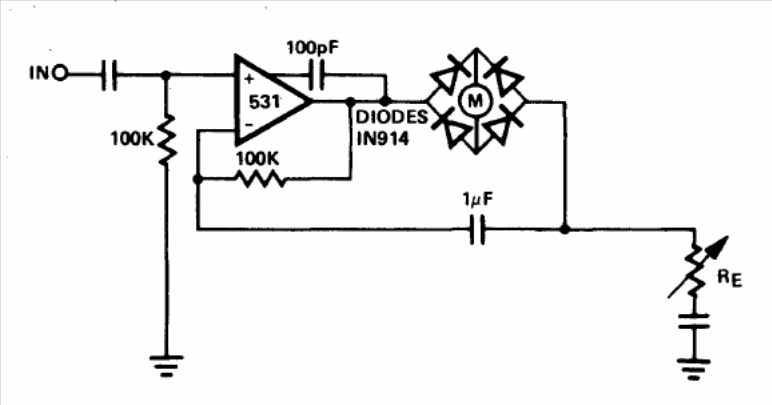

The integrated circuit used in this application is uncommon, but equivalent operational ones can be used. The circuit is from the Signetics integrated circuits manual from 1972.




| Clique na imagem para ampliar |
