2 V voltmeter ICL7117 (CB15358E)

Details
Written by: Newton C. Braga



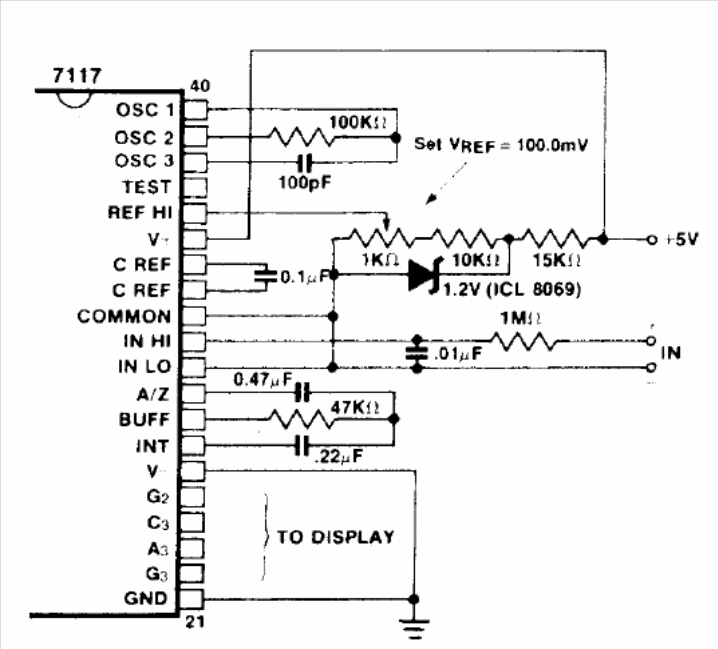

This circuit has a 2 V full scale using a 4-and-a-half-digit A / D converter. The circuit is powered by a voltage of 9 V. We found this configuration in the 1983 Intersil Databook.




| Clique na imagem para ampliar |
