CMOS Lottery (CB15066E)

Details
Written by: Newton C. Braga

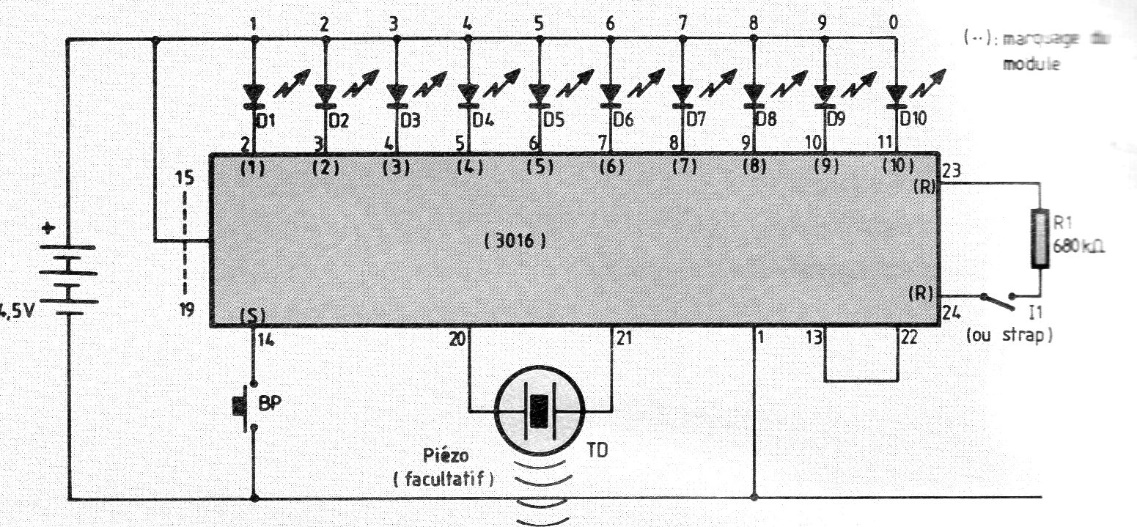

This simple circuit can work with either 4.5 V or 6 or 9 V if a 1k resistor is added in series with the set of LEDs. The circuit is from an old French publication.
