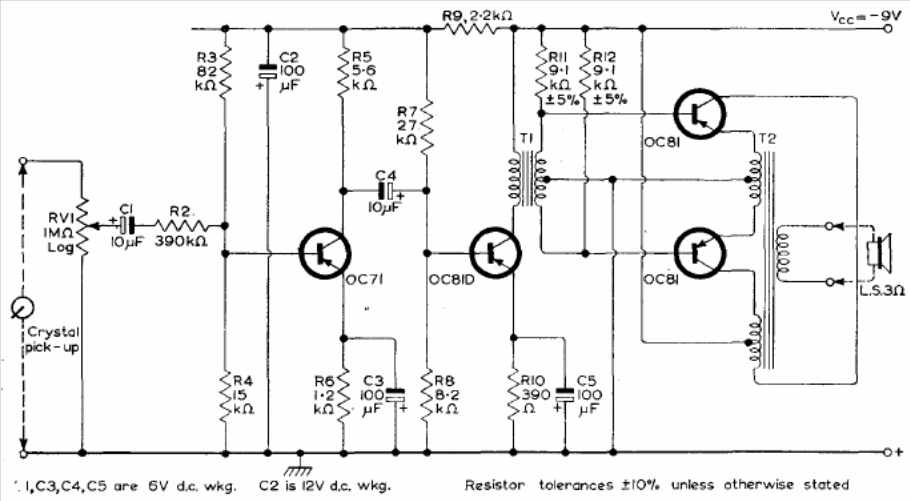

This circuit used germanium transistors and was powered by 6 batteries that were also used to rotate the turntable. The circuit is from Mullard's transistor reference manual.
| Clique na imagem para ampliar |
540 mW Phonographic Amplifier from 1960 (CB14764E)
- Details
- Written by: Newton C. Braga
