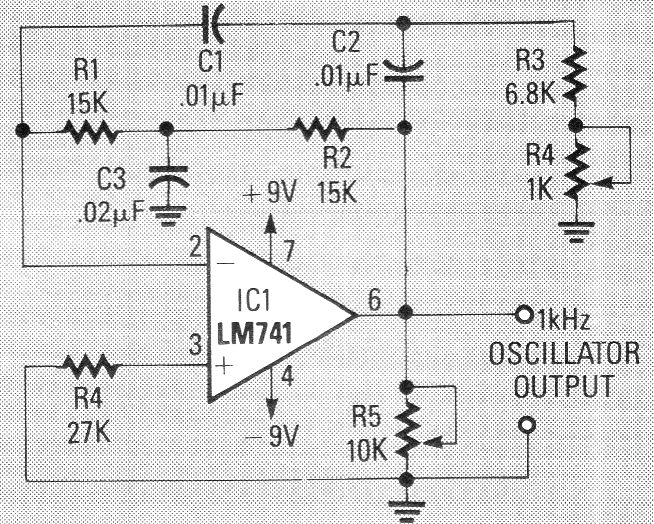

With the values of the indicated components, this oscillator produces a sinusoidal signal of 1 kHz. Equivalent operational amplifiers can be used, and the power supply must be symmetrical. The circuit is from a 1989 Radio Electronics.
