Wudeband Amplifier MC34001 (CB14474E)

Details
Written by: Newton C. Braga

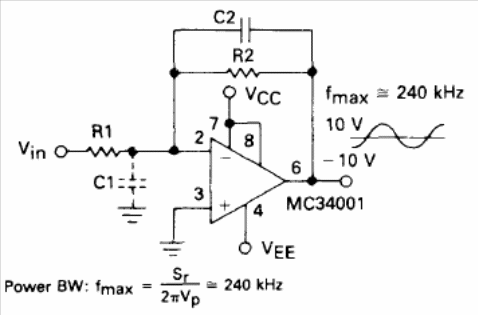

The circuit shown is from Motorola's Linear Databook published in 1990. As the CI is uncommon nowadays, the configuration can be applied to other operational amplifiers.
