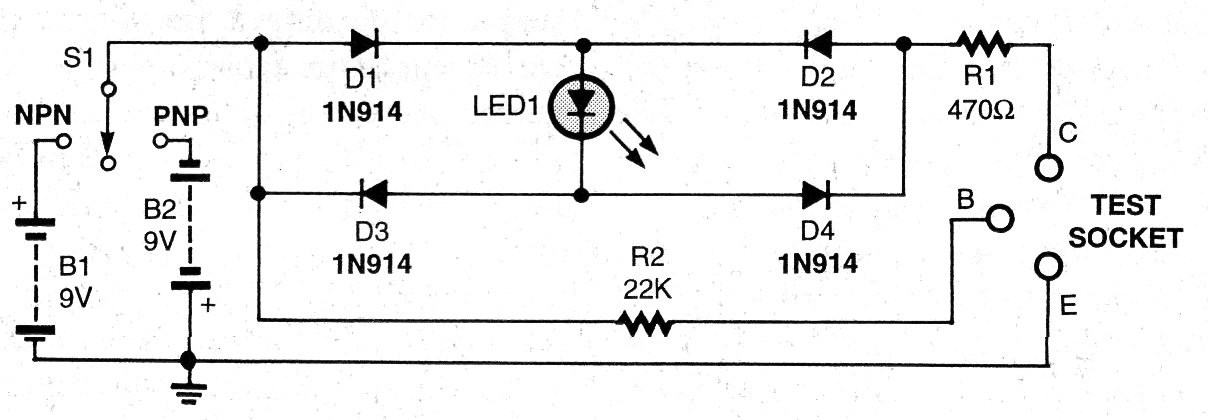

The circuit shown in the figure is a simple test of NPN and PNP transistors. The circuit detects the state of these components serving for types of general use. We found the circuit in an American publication from the year 2000.
