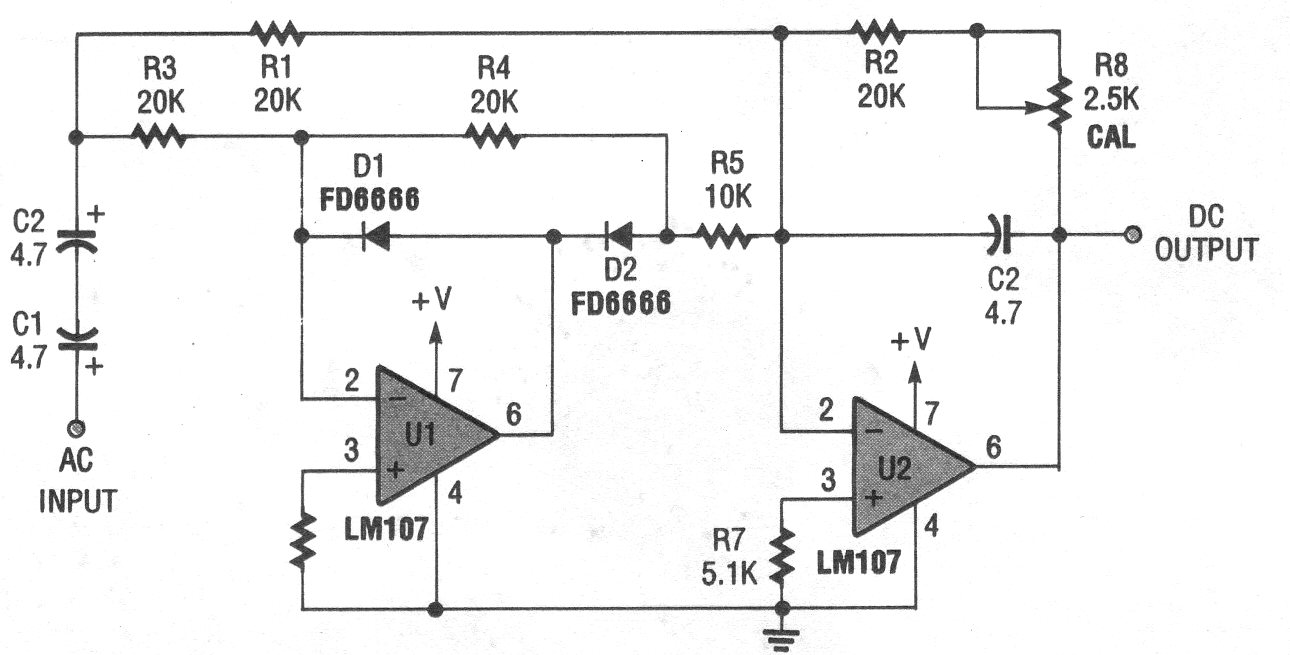

This circuit has an output that provides the average value of the rectified voltage. Operational amplifiers support equivalents and the supply need not be symmetrical. We found the circuit in a documentation from the 90s.
| Clique na imagem para ampliar |
