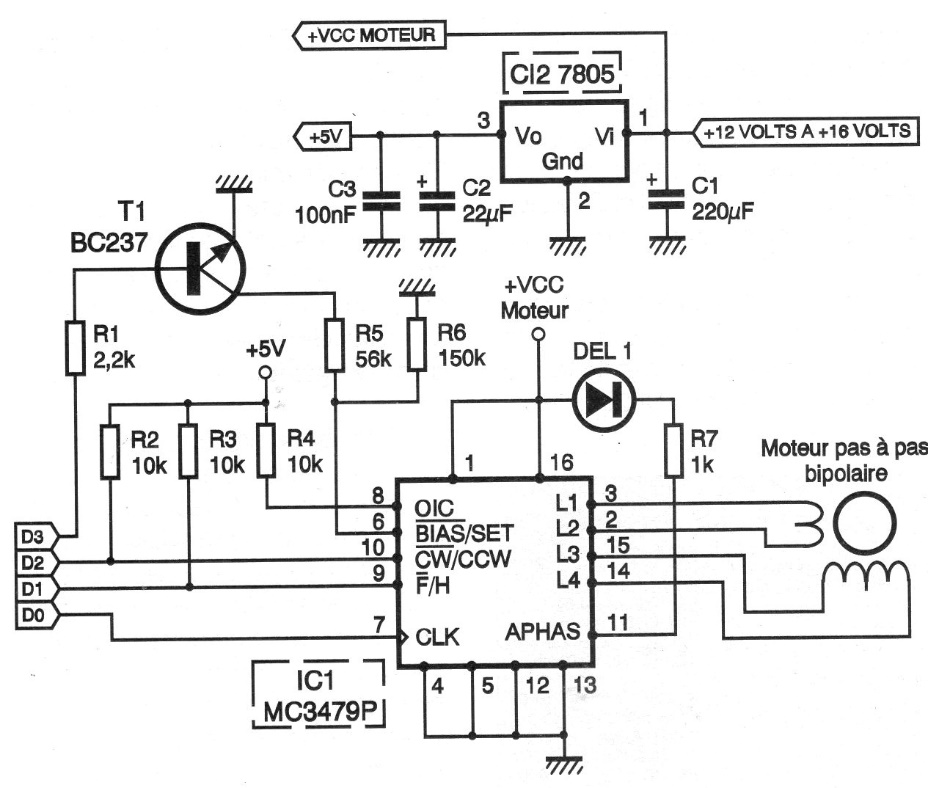

This stepper motor control was originally designed to use a PC's parallel port and is quite simple to assemble. With adaptations it can be used to act as a shield for microcontrollers. The circuit was found in French documentation from the 90s.
