Operational Half Wave Rectifier 2 (CB14841E)

Details
Written by: Newton C. Braga

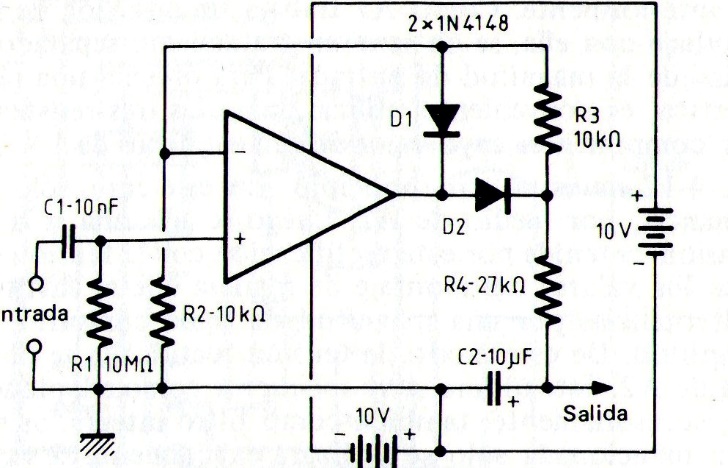

This circuit can use almost any operating system and has a high input impedance. The power supply must be symmetrical. The circuit was obtained in documentation from the 1980s.






| Clique na imagem para ampliar |
