75 mW Stereo Amplifier TDA7052 (CB15400E)

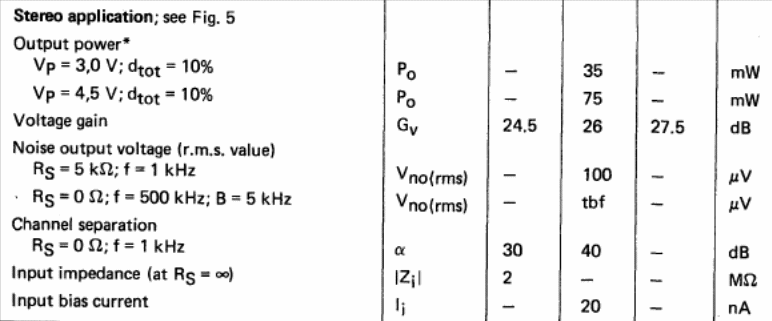

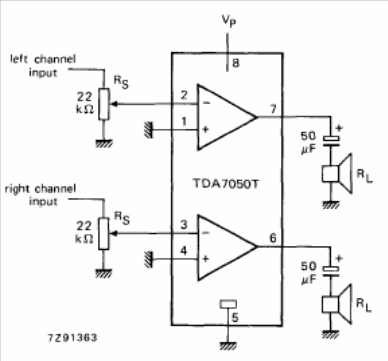

This very simple amplifier was found in the Philips Databook of 1990. The circuit is suitable for headphones and other battery powered applications.
