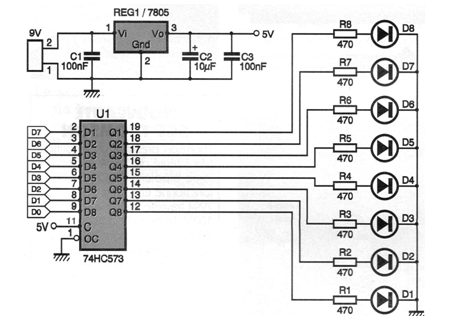

This circuit allows you to use the parallel PC interface to control LEDs. The circuit was found in French documentation from the 90s and can serve as a basis for a control interface if the LEDs are replaced by relay drivers, for example.
LED PC Interface (CB15032E)
- Details
- Written by: Newton C. Braga
