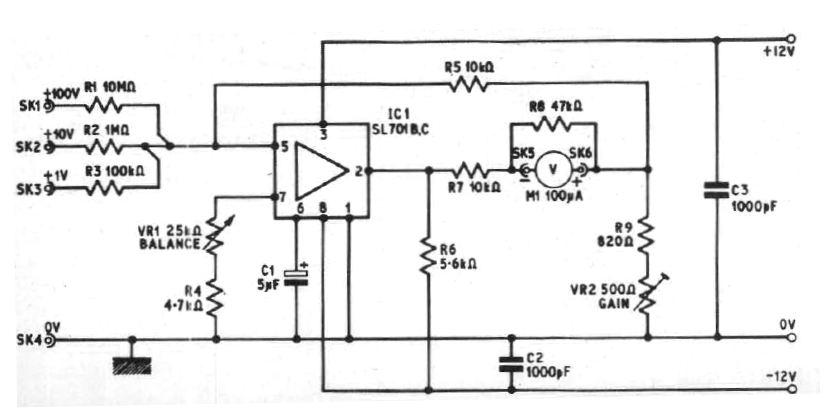

Operational Voltmeter (CB14452E)

Details
Written by: Newton C. Braga



The circuit is from 1968, but we can use a modern one like the 741. The symmetrical power supply voltage (two batteries or source) can be from 9 to 12 V.
