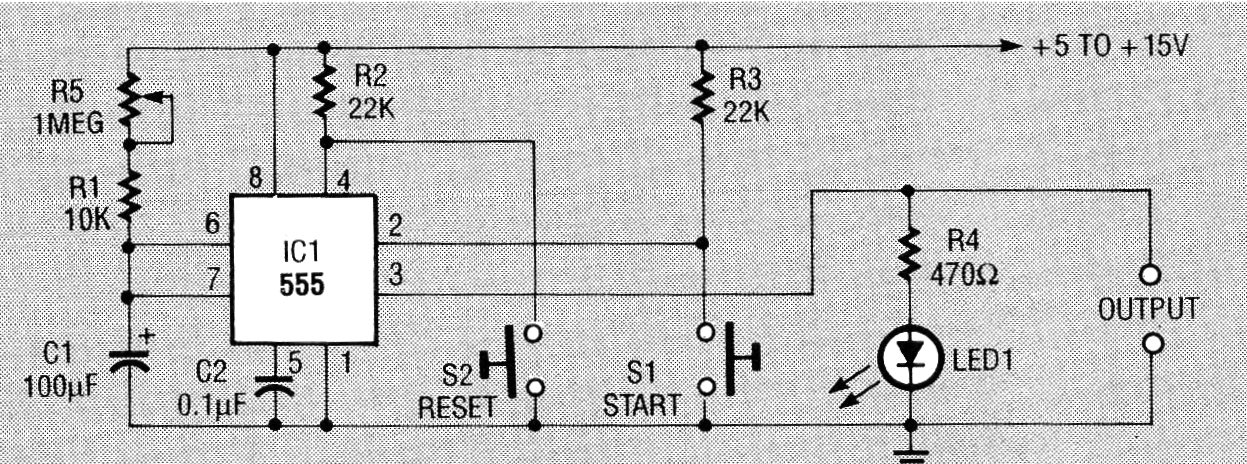

With the values of the components indicated, this timer controls intervals from a few seconds to a few minutes. C1 can be increased to 1,500 uF to obtain intervals of up to more than half an hour. The circuit is from a year 2000 publication.
| Clique na imagem para ampliar |
