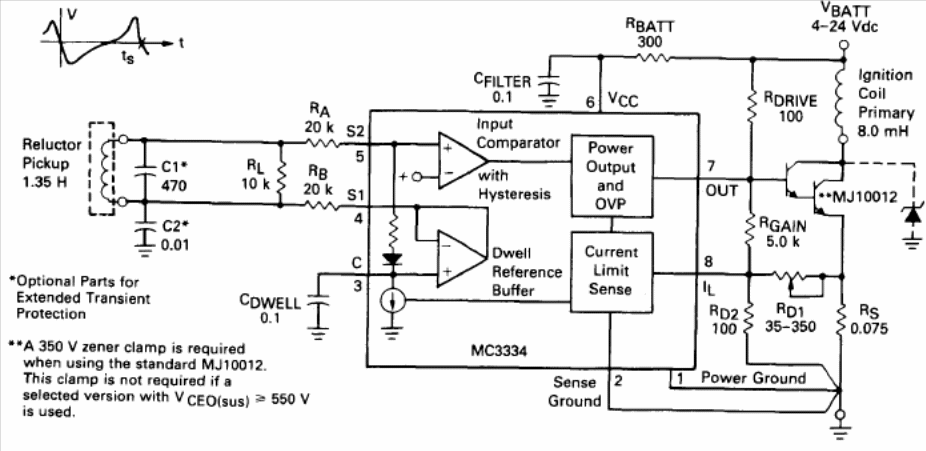

This electronic ignition circuit was found in Motorola's Linear Databook of 1990. The components are not common today and the power transistor must have a heatsink. The circuit is an assisted ignition system with a magnetic sensor.
