Debouncer (CB15037E)

Details
Written by: Newton C. Braga

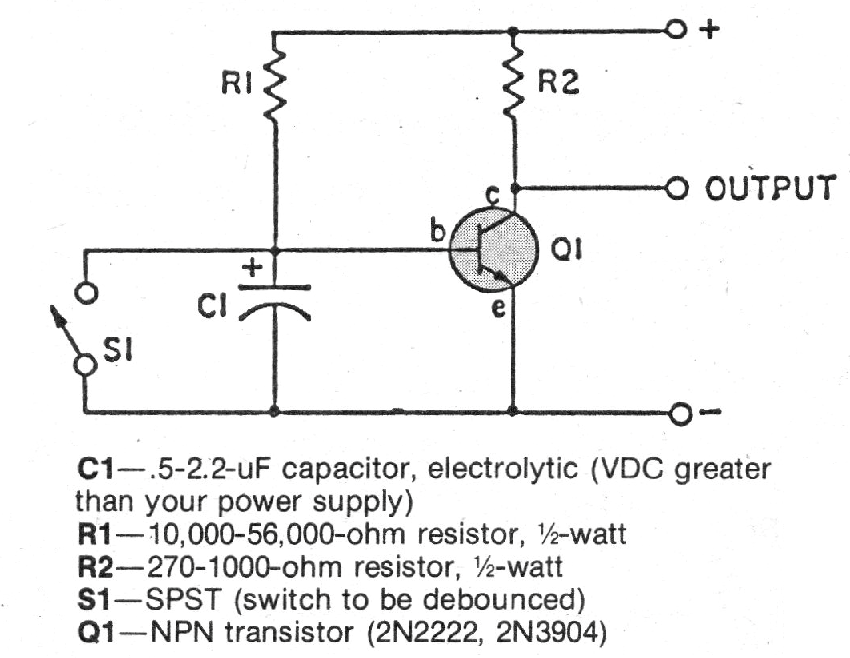

This debouncer circuit uses a transistor to produce a single pulse when the switch is triggered. The transistor conducts when the switch is opened. We found this configuration in an 80's publication.




| Clique na imagem para ampliar |
