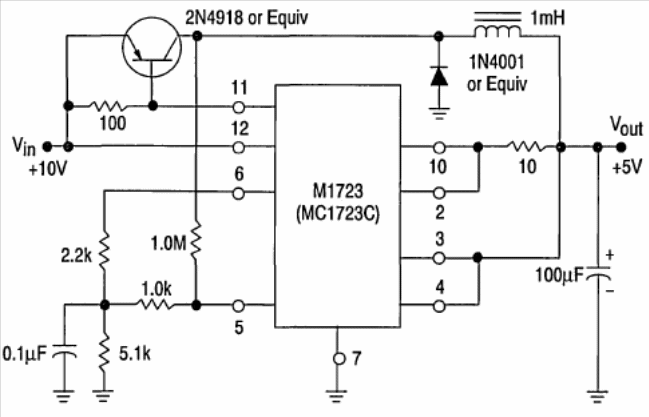

5 V x 1A Switching Regulator MC1723 (CB15330E)

Details
Written by: Newton C. Braga



This circuit is from Motorola's Linear Interface ICs from 1993. The MC1723 is the equivalent of the well-known 723. The transistor supports equivalents.
