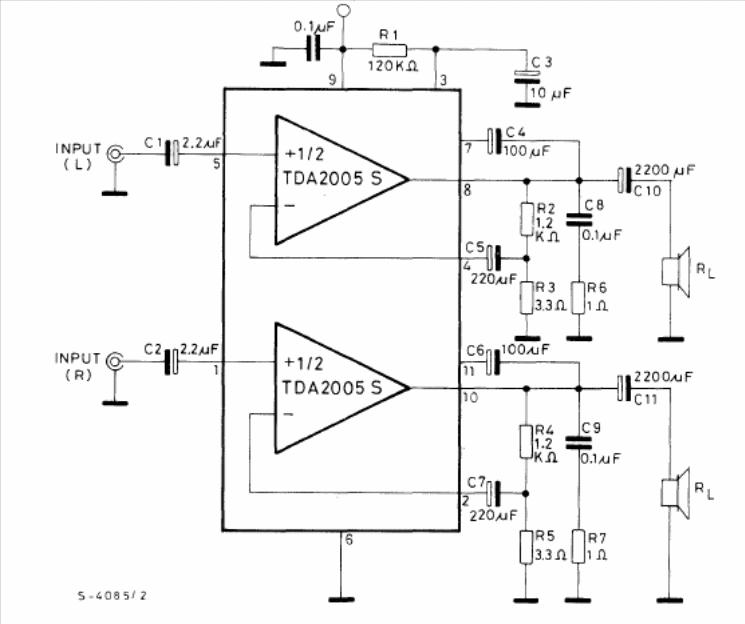

This amplifier for automotive use was found in the SGS manual of linear integrated circuits of 1982. The circuit can be powered by voltages up to 18 V and the load is from 2 to 16 ohms. The power depends on the load and the integrated circuit must have a heat radiator.
| Clique na imagem para ampliar |
