Operational Monostable (CB15107E)

Details
Written by: Newton C. Braga

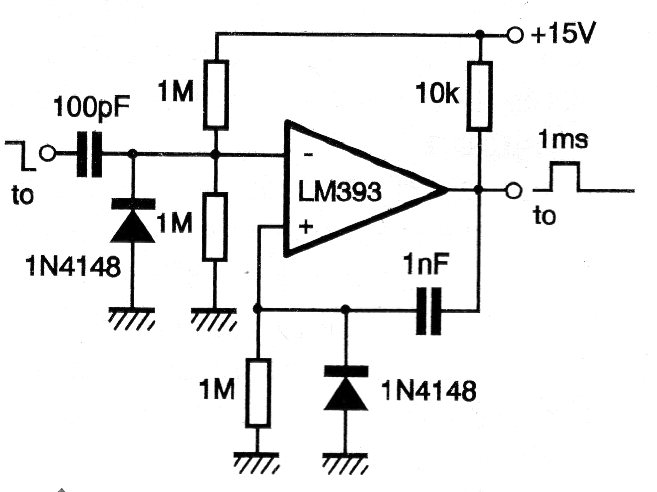

In the figure we have the way to implement a monostable with an operational amplifier LM393. The configuration applies to other operators and the power supply must be symmetrical.
