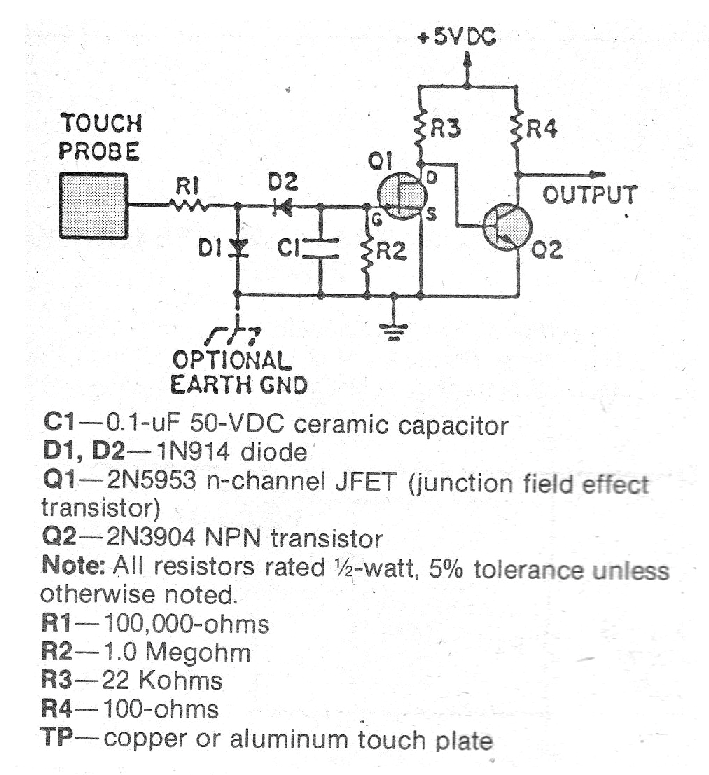

We found this circuit in a publication from the 1980s. It can function as a touch switch and if the plate is large, like an approximation sensor. The FET admits equivalent as the BF245 and at the output a relay drive circuit can be connected, for example. The power source must be insulated by a transformer.
| Clique na imagem para ampliar |
