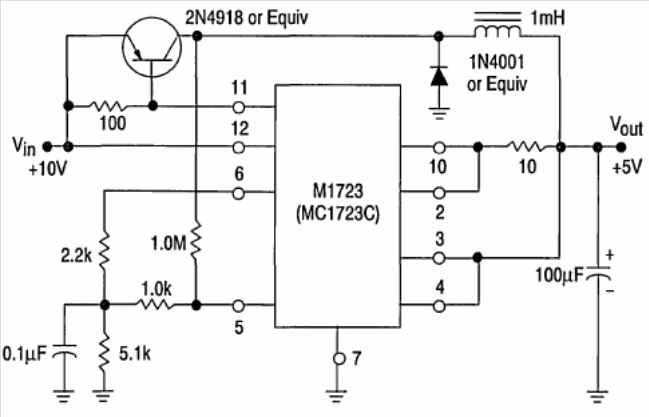

This circuit is from Motorola's Linear Interface ICs from 1993. The MC1723 is the equivalent of the well-known 723. The transistor supports equivalents.
| Clique na imagem para ampliar |
5 V x 1A Switching Regulator MC1723 (CB15331E)
- Details
- Written by: Newton C. Braga
