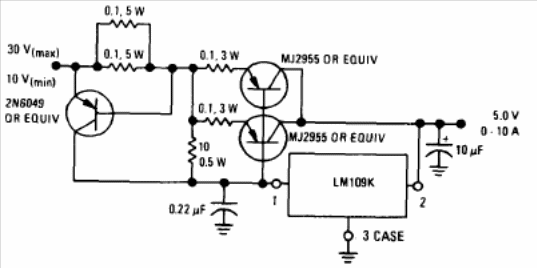

The LM109 can be found with different origins. The circuit shown specifically is from Motorola's Linear Databook but appears in other Databook. Both the transistors and the integrated circuit must be mounted on heat radiators.
5 V x 10 A Regulator LM109 (CB14505E)
- Details
- Written by: Newton C. Braga
