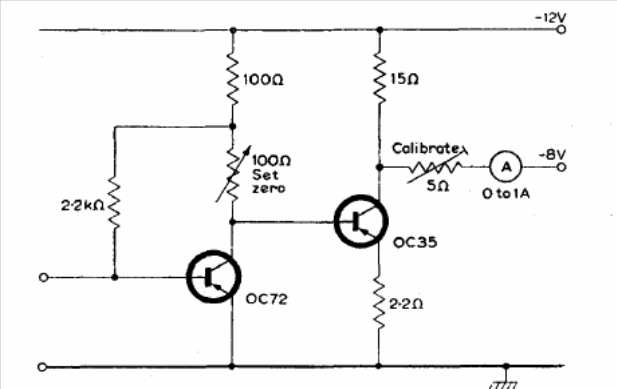

Gemanium Transistors DC Amplifier (CB14775E)

Details
Written by: Newton C. Braga



This instrumentation circuit was found in the 1960 transistor application manual. More modern transistors can be used.
