Phototransistor Amplifier (CB15016E)

Details
Written by: Newton C. Braga

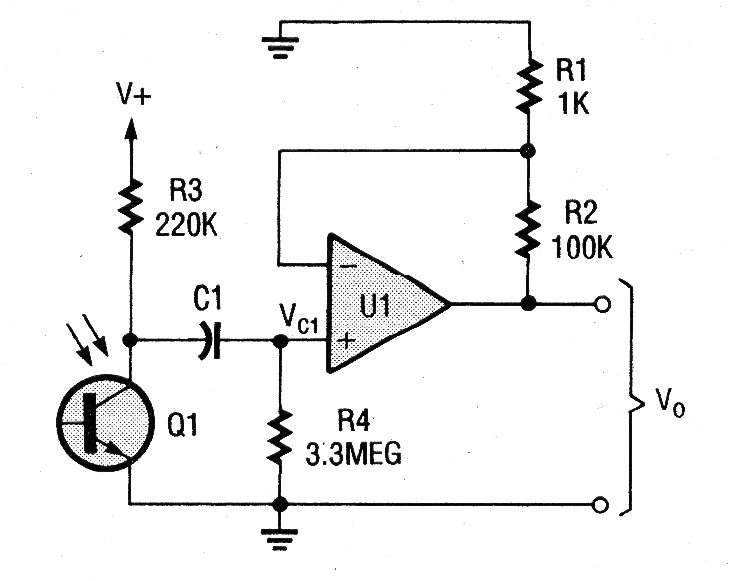

This setting applies to virtually any photo transistor and any operational amplifier. The power supply must be symmetrical, and the gain is determined by the relationship between R2 and R1.




| Clique na imagem para ampliar |
