Active Notch Filter (CB14917E)

Details
Written by: Newton C. Braga

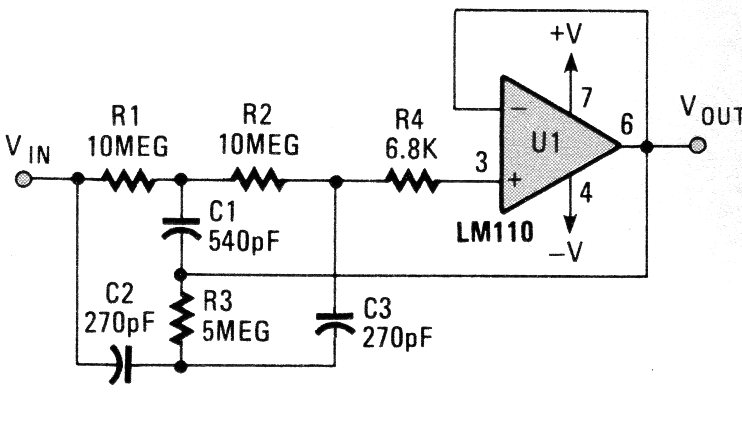

The frequency of this circuit, for the indicated components, is 1 kHz. Other operational amplifiers can be used, and the power supply must be symmetrical.
