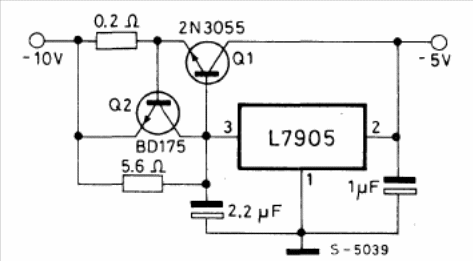

L7905 is a negative voltage regulator equivalent to 7905. The circuit is from the 1982 SGS linear integrated circuit manual. The 2N3055 must have a good heat radiator.
5V x 4 A negative power source L7905 (CB15174E)
