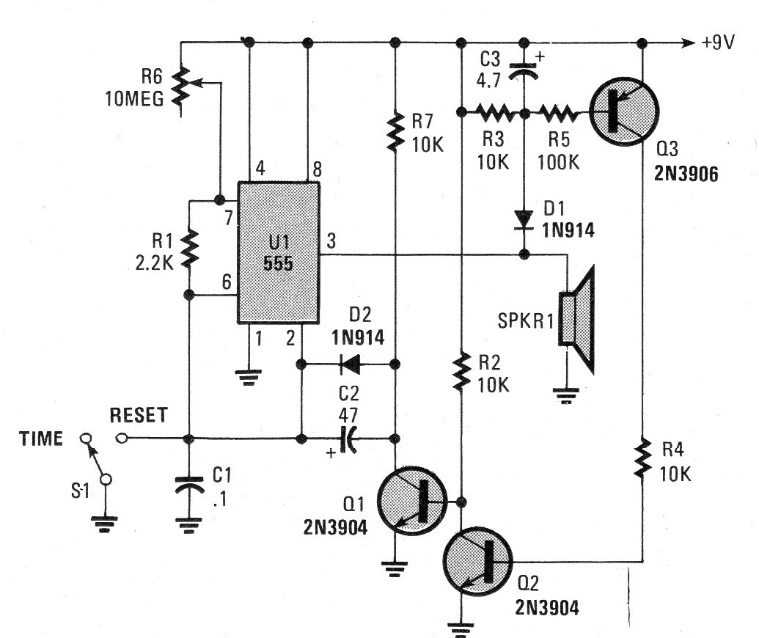

In this circuit the 555 is configured as an adjustable timer for long intervals. The capacitor C1 can be bigger, depending on the desired time and the transistors admit equivalents like the BC548 and BC558. The circuit is from a 1991 Poptronics.
