1960 DC Amplifier (CB14776E)

Details
Written by: Newton C. Braga

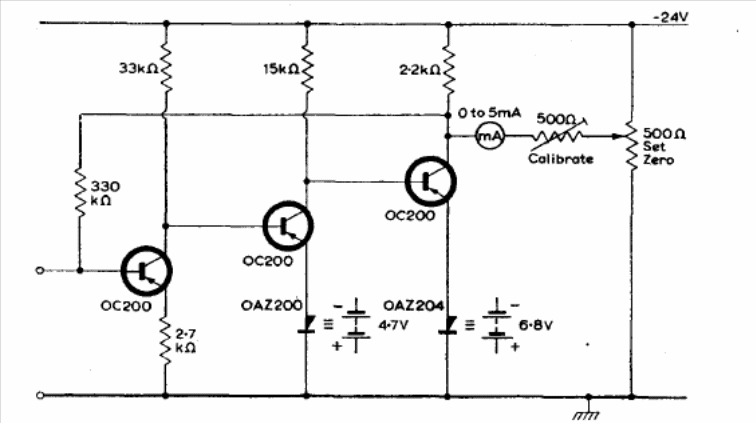

This circuit was found in Mullard's transistor application manual from 1960. More modern transistors can be used. The zener diodes used have the indicated voltages.
