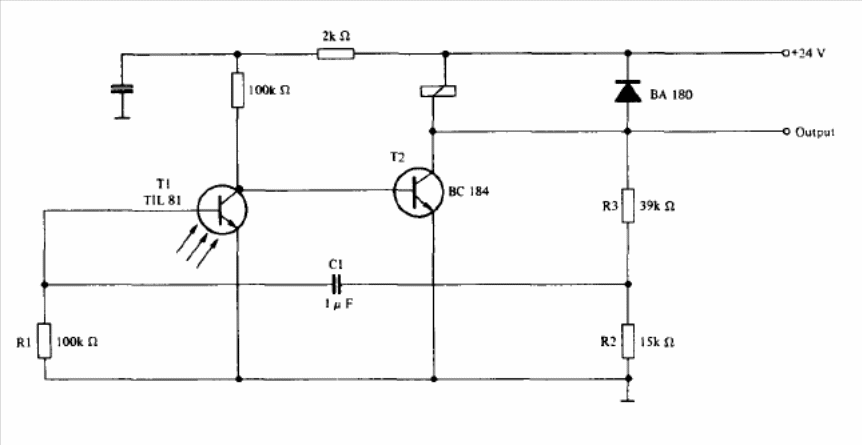

This circuit has a monostable action with time given by the capacitor. The bipolar transistor can be the BC548 and the relay is a sensitive type. The circuit is from a Texas Instruments optoelectronics manual. The circuit can be used as a shield for microcontrollers.
| Clique na imagem para ampliar |
