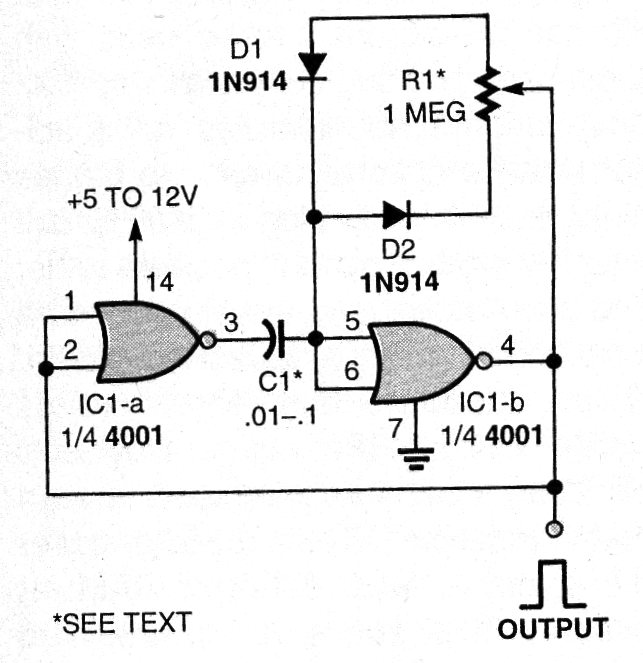

This CMOS oscillator circuit generates signals up to a few megahertz, depending on the capacitor value. The power can be between 5 and 12 V and the frequency is set to R1. The output signal is rectangular. We found the circuit in an American publication from the 90s.
