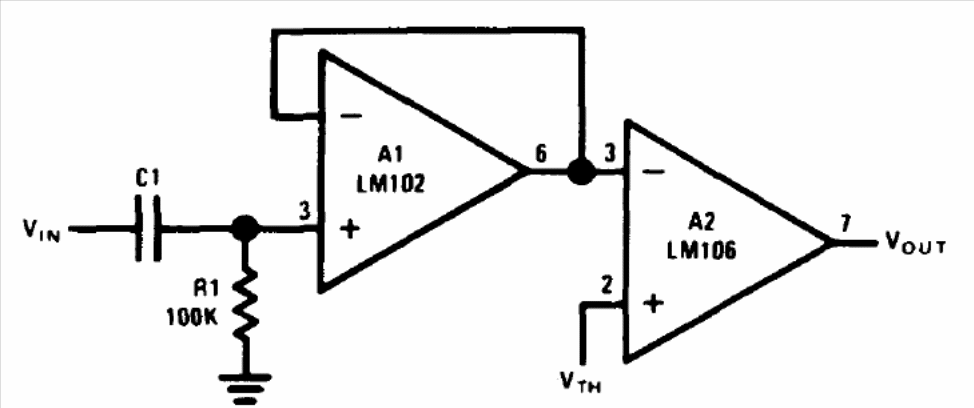

The circuit shown in the figure can be designed with more modern operational amplifiers, as it is from 1994 documentation by National Semiconductor. The power supply must be symmetrical.
| Clique na imagem para ampliar |
AC Signal Comparator (CB14418E)
- Details
- Written by: Newton C. Braga
