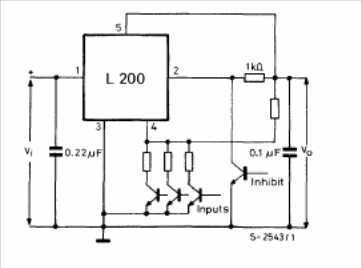

The presented circuit has the output voltage digitally selected by the transistors on pin 4 and, in addition, it has an inhibit input. The circuit is from the 1982 SGS integrated circuits manual.
Digital Voltage Selection Regulator L200 (CB15143E)
- Details
- Written by: Newton C. Braga
