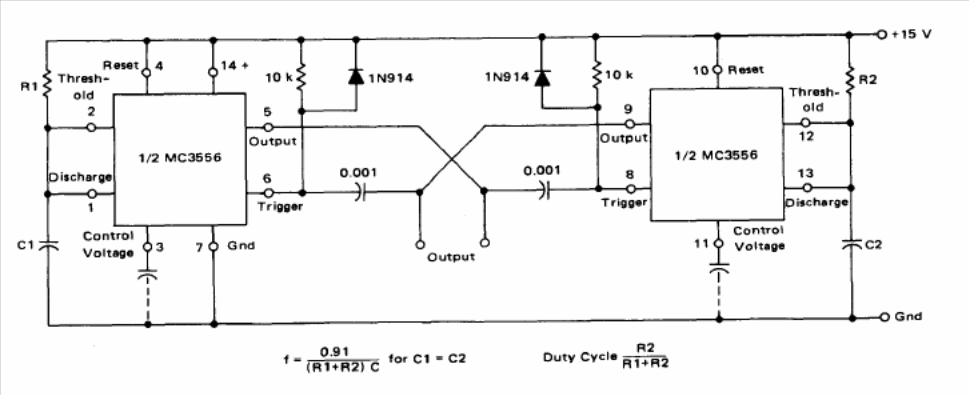

The integrated circuit used in this application is a Motorola 555 dual. The circuit is from Motorola's 1990 Linear Databook. The components are calculated as in a conventional 555, as shown in the formulas next to the diagram.
