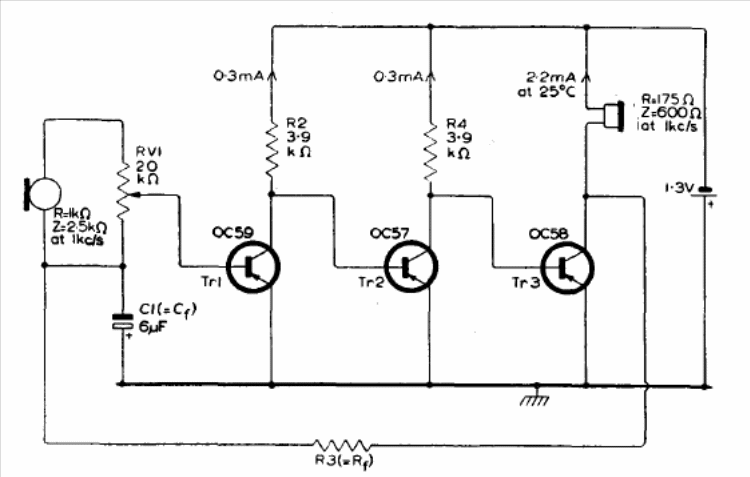

We found this circuit in the old Mullard transistor reference manual from 1960. The circuit is powered by a single battery and the transistors are germanium common at the time.
| Clique na imagem para ampliar |
Direct Coupling Hearing Aid Amplifier (CB14760E)
- Details
- Written by: Newton C. Braga
