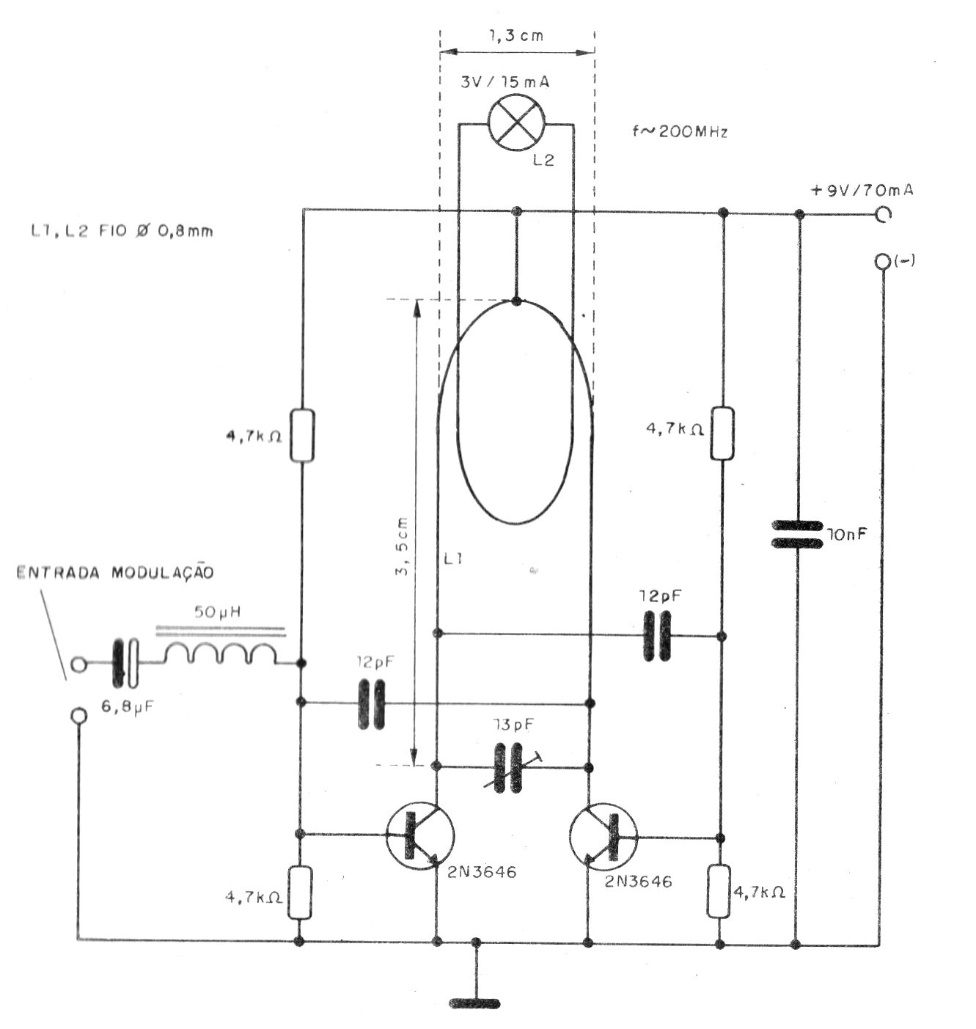

The coils of this circuit are links made with common wire in the dimensions indicated. The circuit produces a signal around 200 MHz and accepts external modulation. Transistors can be replaced by modern equivalents that oscillate well in the VHF range.
