This circuit is from the 1960 Mullard transistor reference manual. The driver and output transformers are the critical elements of the design. This configuration was common for radio outputs stages at the time.
| Clique na imagem para ampliar |

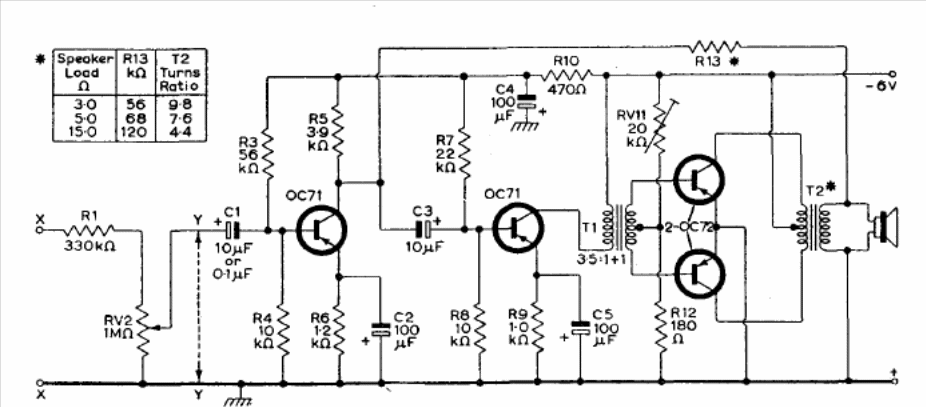

Germanium Transistors 200 mW Amplifier (CB14761E)
- Details
- Written by: Newton C. Braga
