High Input Voltage 15 V Power Supply LM340 (CB14261E)

Details
Written by: Newton C. Braga

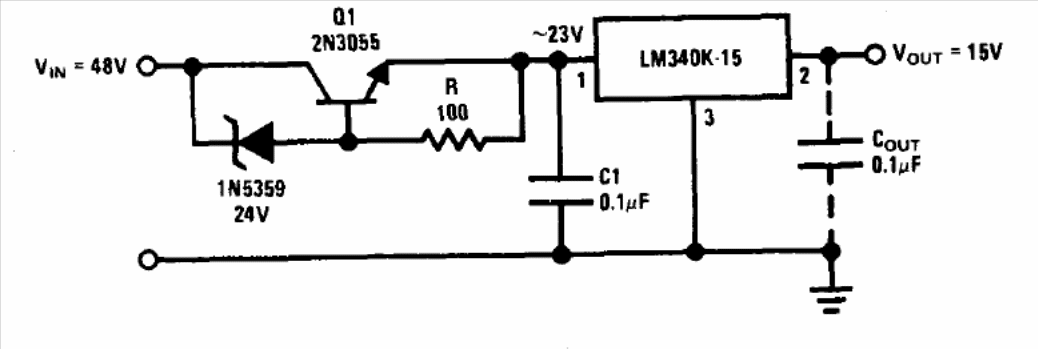

The circuit shown in the figure was found in the Linear Applications Handbook by National Semiconductor. Transistors must be provided with heatsinks. The zener lowers the input voltage according to what the regulator admits.




| Clique na imagem para ampliar |
