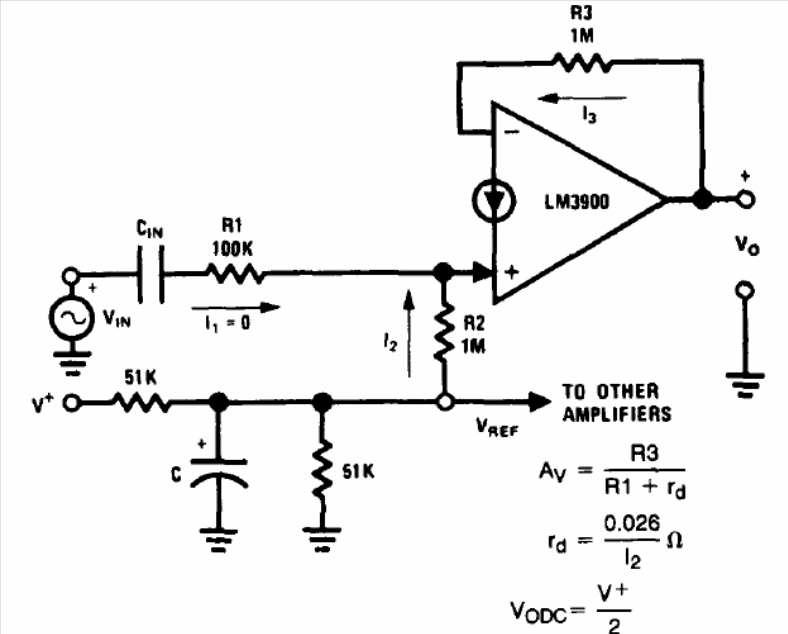

In the figure we have the basic application of an LM3900 transconductance amplifier, as suggested by National Semicondictor in its Linear Applications Handbook. The circuit must be powered by a symmetrical source and in this case, we have a voltage gain of 10. The formulas for calculating the components are given next to the diagram.
