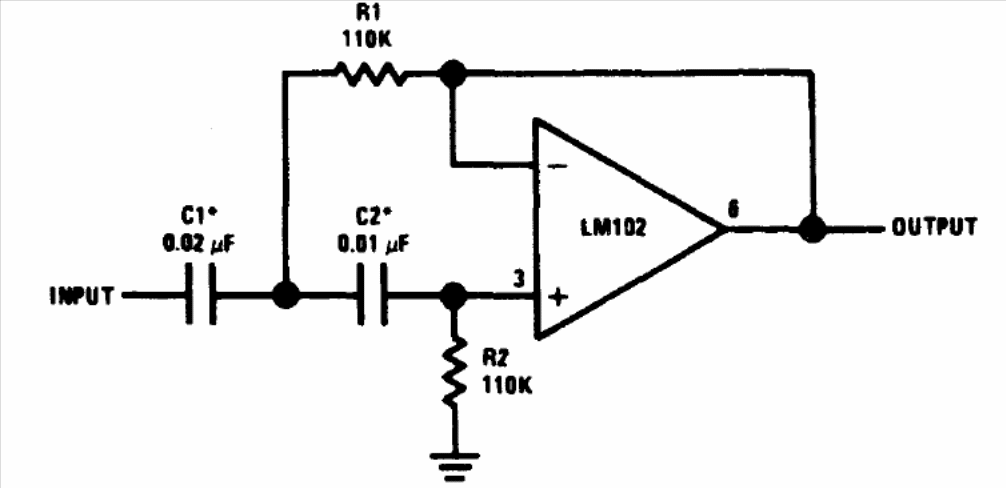

In the figure we have an active high pass filter of 100 Hz, suggested by National Semiconductor in its 1994 Linear Applications Handbook. The circuit can be implemented with other operational and the capacitors changed to other frequencies. The circuit requires a symmetrical source.
