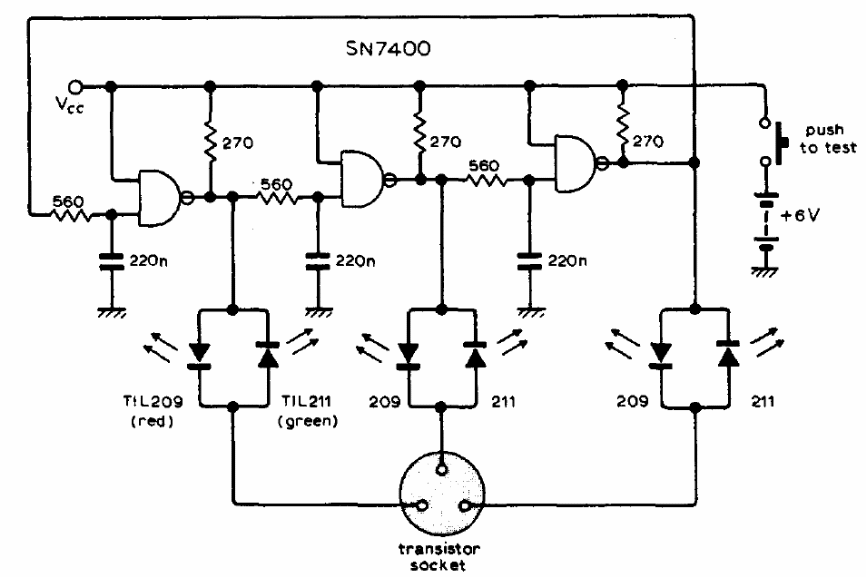

The LEDs, in addition to flashing if the transistor is good, also indicate the polarity of the component. The circuit must be supplied with 5 V. For the indicated case of 6 V, it is recommended to place a diode 1N4002 or equivalent in series.
