Drive Loads Up to 300 mA LM3900 (CB14222E)

Details
Written by: Newton C. Braga

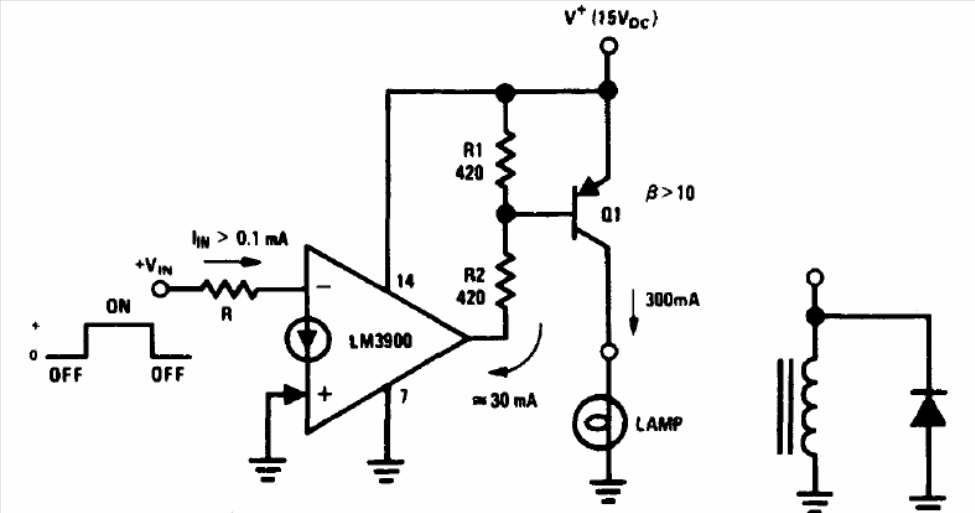

The figure shows how to drive a load up to 300 mA with an LM3900. The transistor can be a BD136. We found this setting in the 1994 National Semiconductor Linear Applications Handbook.
