LED Flasher 7400 (CB13719E)

Details
Written by: Newton C. Braga

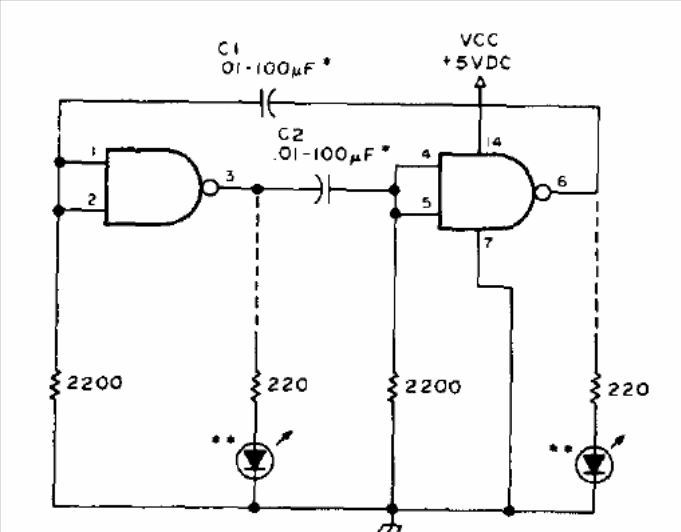

This traditional TTL configuration was obtained in a 1977 documentation. The supply must be made with 5 V and the capacitors can be changed for operation at other frequencies.
