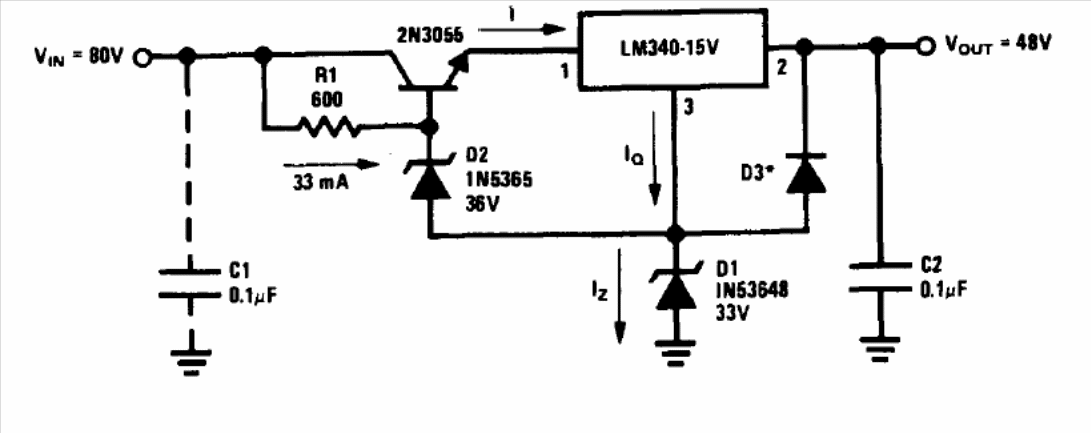

National Semiconductor suggests this circuit in its 1994 Linear Applications Handbook. The D3 diode must be of general-purpose germanium and both the transistor and the integrated circuit must be equipped with heat radiators.
