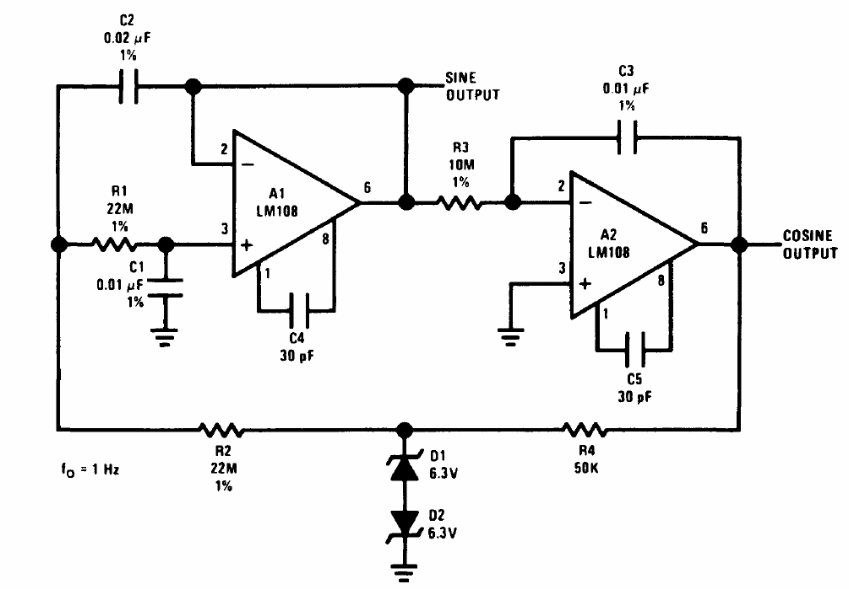

The circuit presented was found in the 1994 Linear Applications Handbook from National Semiconductor. The circuit can be adapted to use other operational ones and the frequency can be changed by changing the capacitor values. The power supply must be symmetrical.
